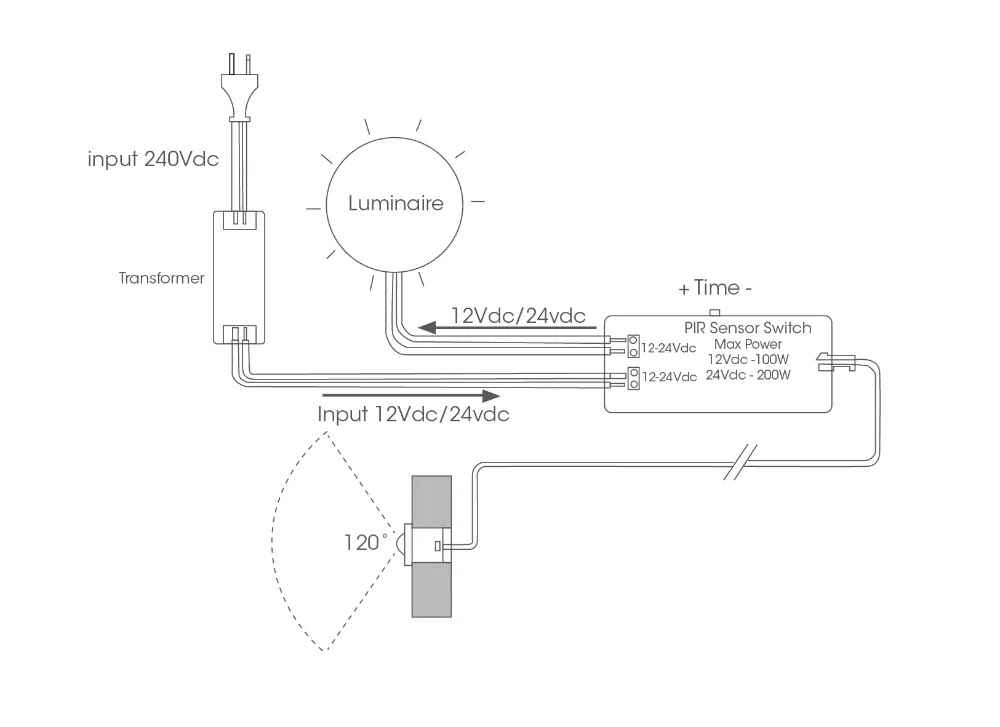

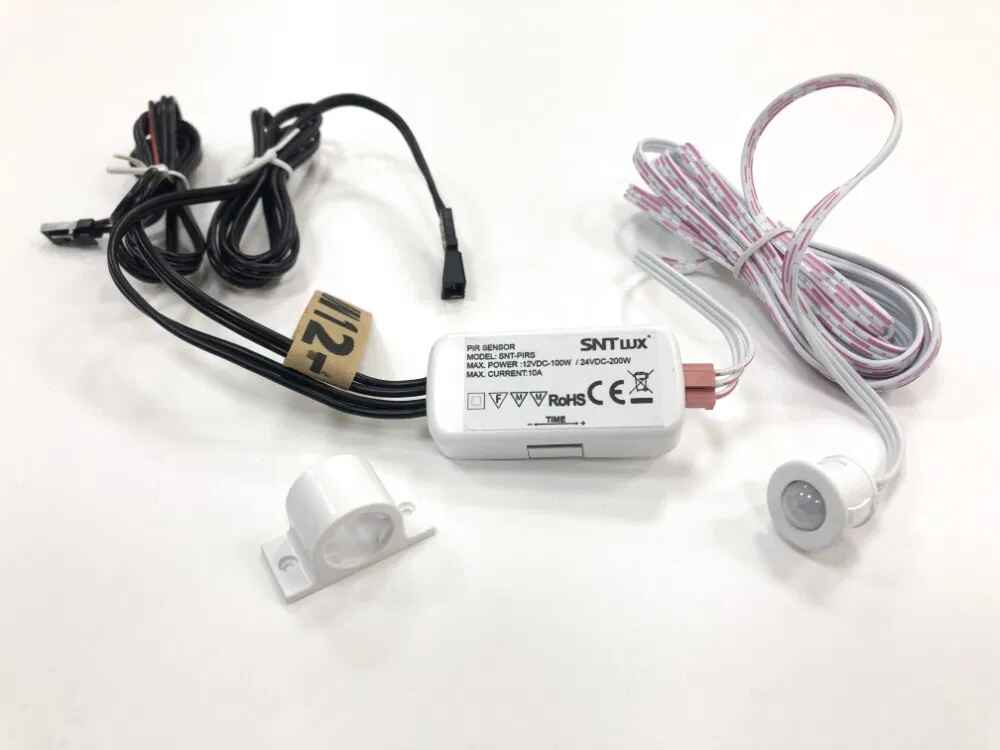

This sensor switch offers a discreet surface mounted or recessed solution for automatic switching of 12/24Vdc LED lighting. Connection via the Sycamore plug and play connector system allows connected lights to be turned on when it senses movement within a 3 metre distance at a 120 degree beam angle.
| Category | Description |
|---|
| Power Supply | 12/24 Vdc |
|---|
| Current | 10 A |
|---|
| Max Wattage | 12Vdc - 100W 24Vdc - 200W |
|---|
| Mounting | Recessed or Surface |
|---|
| Sensor Distance | 1 - 3 metres |
|---|
| Sensor Range | 120 ° |
|---|
| Cable Length | 2 metre sensor cable |
|---|
| Input Cable | 1 metre with connector |
|---|
| Output Cable | 1 metre with connector |
|---|
| Sensor Depth x Cutout | 16 mm x 14 mm |
|---|
| Sensor Switch Dimensions | 51 mm L x 24 mm D x 16 mm H |
|---|
Warranty
This product has a 3 year warranty.
